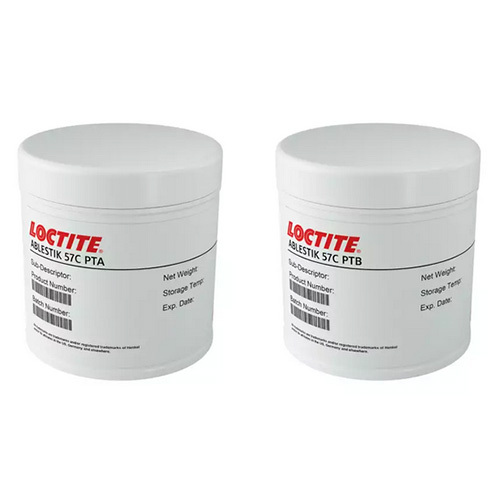

Send InquiryABLESTIK 57C Electrically Conductive Adhesives
MOQ : 100 Units
ABLESTIK 57C Electrically Conductive Adhesives Specification
- Form
- Paste
- Features
- Electrically conductive
- Surface Of Application
- Ceramic
- Adhesive Type
- Thermoset
- Storage Temperature
- 18.0 C - 25.0 C
- Tensile Strength
- 700.0 psi (Aluminium)
- Usage
- Electrically conductive adhesives
- Grade
- Electronics assembly materials
- Color
- Silver
- Physical State
- Paste
- Cure Schedule
- 3.0 h @ 65C
- Cure Type
- Heat cure
- No. of Components
- 2 part
- Resin Colour
- Silver
- Hardener Colour
- Silver
- Operating Temperature
- -60C to 120C
ABLESTIK 57C Electrically Conductive Adhesives Trade Information
- Minimum Order Quantity
- 100 Units
- Payment Terms
- Cash in Advance (CID)
- Supply Ability
- 5000 Units Per Month
- Delivery Time
- 7 Days
- Main Domestic Market
- All India
About ABLESTIK 57C Electrically Conductive Adhesives
For challenging, heavy-duty industry applications, e.g. lightning strike connections to provide additional electrical protection on helicopters, choose LOCTITE® ABLESTIK 57C. This electrically and thermally conductive epoxy-based adhesive is easy to use and highly thixotropic to allow manual application via spatula, even in overhead applications. It has an operating temperature of -60°C to 120°C (-76°F to 248°F) and has a medium shear strength.
- Electrically conductive
- Thermally conductive: 7.2 w/mK
- Highly thixotropic to allow manual application via spatula, even in overhead applications
Reliable Electrical Conductivity for Electronics Assembly
ABLESTIK 57C delivers superior electrical conductivity, making it perfect for applications where both strong bonding and current transfer are essential. Its silver-filled, thermoset composition ensures reliable interconnections in sensitive electronic components and assemblies found in high-tech devices.
Simple and Effective Two-Part Mixing Process
The product consists of a resin and a hardener, both silver in color, supplied in a paste form. Accurate mixing of these two components activates the adhesive's properties, resulting in a strong, conductive bond after curing. This simple process provides consistency and ease for assembly professionals.
FAQ's of ABLESTIK 57C Electrically Conductive Adhesives:
Q: How do I properly mix and apply ABLESTIK 57C adhesive?
A: ABLESTIK 57C is a two-part adhesive requiring thorough mixing of equal parts resin and hardener, both supplied as silver pastes. Once mixed until uniform, apply it directly to cleaned ceramic or other compatible surfaces for optimal bonding and conductivity.Q: What is the recommended cure process for ABLESTIK 57C?
A: For best results, cure the adhesive at 65C for 3 hours. This heat cure schedule ensures the adhesive reaches its thermoset state, maximizing both strength and electrical conductivity.Q: Where can ABLESTIK 57C be used effectively?
A: This adhesive is suitable for electronics assembly where electrically conductive bonding is essential, especially on ceramic surfaces or aluminum, and can be used in operating temperatures ranging from -60C to 120C.Q: What are the main benefits of using ABLESTIK 57C?
A: ABLESTIK 57C offers strong, electrically conductive bonds with high tensile strength, making it ideal for secure, reliable electronic assemblies. Its paste form enables precise application, while its robust operating range supports various electronics environments.Q: How should ABLESTIK 57C be stored for maximum shelf life?
A: Store the adhesive components at a temperature between 18C and 25C to preserve quality and prevent premature curing. Maintaining these conditions ensures the adhesive remains stable and ready for use.Q: What surfaces are compatible with ABLESTIK 57C?
A: This adhesive is primarily designed for application on ceramic surfaces but is also effective on metals such as aluminum, making it versatile for electronics assembly and repair tasks.
